Dahua TiOC 8MP Active Deterre audio Security ip Camera IPC-HDW3849H-AS-PV-S4 lot

$317.30 USD

~~$475.95 USD~~ $317.30 USD

Sale Sold out

quantity of cameras 1 2 4 6 8 10

eBay

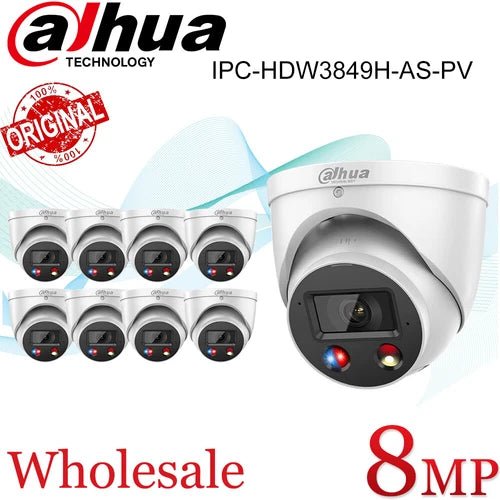

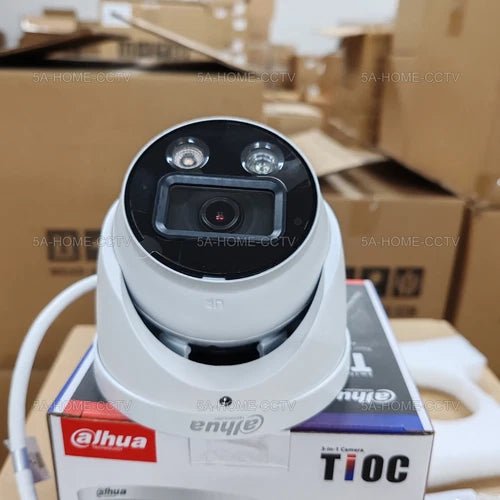

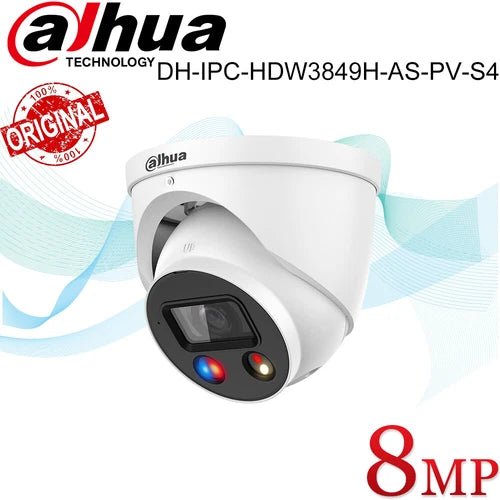

Dahua Original 8MP Full-Color 2-Way Audio TiOC PoE Camera IPC-HDW3849H-AS-PV-S4

IPC-HDW3849H-AS-PV

8 MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera

> 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840 × 2160)-25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

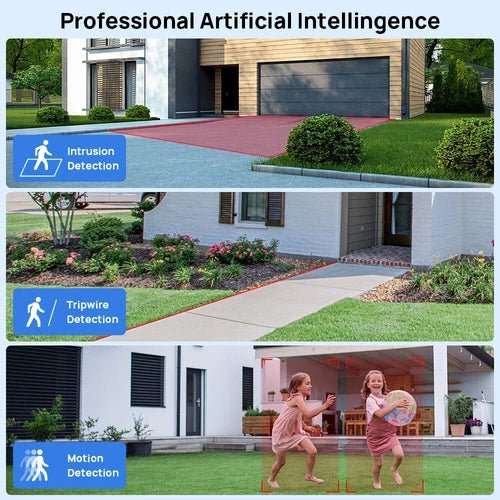

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; 1-ch speaker; support two-way talk

> 12 VDC/PoE power supply.

> IP67 protection.

> Sound and light alarm (red and blue lights).

> SMD 4.0.

> One-tap arming/disarming through alarm input.

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Functions

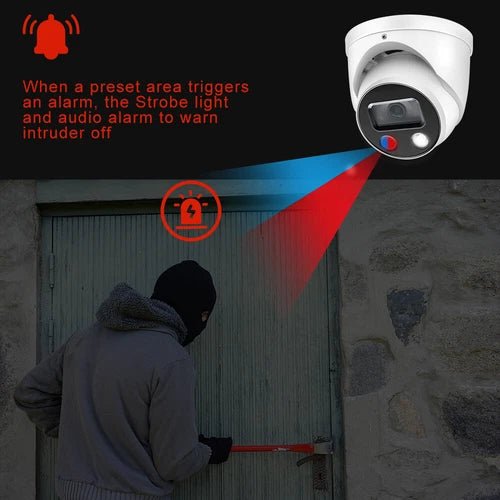

Siren and Light Active Deterrence

Dahua siren and light active deterrence network camera supports thelight alarm and voice alarm when perimeter event occurs, to realize thedeterrence and effective intervention. The camera is built in multiplevoices for selection, and supports customized voice importing.

SMD 4.0

Dahua Smart Motion Detection technology works with intelligentalgorithms to classify targets that trigger motion detection alarms. Itfilters out objects that are not targets, such as small and large animals,to avoid triggering false alarms. With an AI NVR, Quick Pick technologybecomes available, allowing you to easily search for and pick out humanand vehicle targets from SMD event videos, prioritizing the highestmatches.

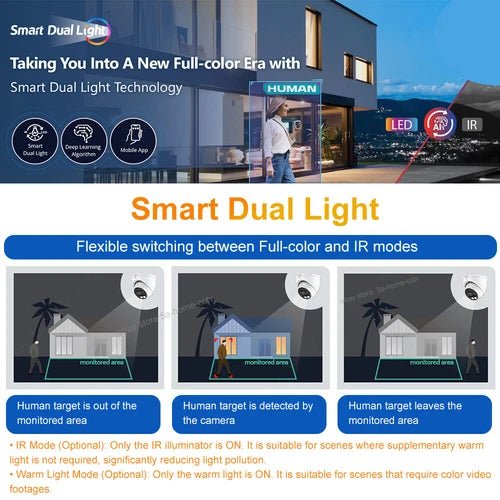

Smart Dual Light

Dahua Smart Dual Light technology adopts smart algorithm to detecttargets. Usually, the IR illuminator is on at night; when the targetappears in the monitoring area, the white light is on, and the camerarecords the full-color video and information of key events. That is, thecamera links snapshot and video with full-color image. When the targetis out of the monitoring area, the white light is off and the IR illuminatoris on, which reduces light pollution efficiently.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technologycan recognize human and vehicle accurately. In restricted area (suchas pedestrian area and vehicle area), the false alarms of intelligentdetection based on target type (such as tripwire, intrusion) are largelyreduced.

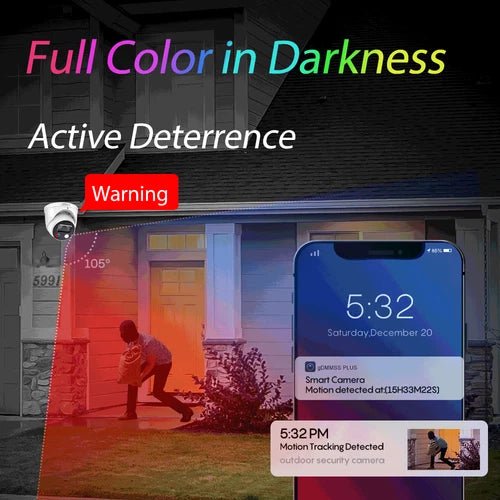

Full-color

With high-performance sensor and large aperture lens, Dahua Full-colortechnology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera cancapture more available light, and display more colorful image details

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smartencoding technology realizes the higher encoding efficiency than H.265and H.264, provides high-quality video, and reduces the cost of storageand transmission

Cyber Security

Dahua network cameras employ a series of security technologies,including security authentication and authorization, access controlprotocols, trusted protection, encrypted transmission and encryptedstorage. These technologies improve the camera's defense againstexternal cyber threats and prevent malicious programs fromcompromising the device.

Protection (IP67, Wide Voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soakingin 1 m deep water for 30 minutes.Wide voltage: The camera allows ±30% (for some power supplies)input voltage tolerance (wide voltage range), and it is widely applied tooutdoor environment with instable voltage.

Specifications

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

256 MB

RAM

2 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 lux-F1.0 (Color, 30 IRE)

0.0004 lux-F1.0 (B/W, 30 IRE)

0 lux (illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 106°; V: 55°; D: 125°

3.6 mm: H: 85; V: 45°; D: 102°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

(216.54 ft)

26.4 m

(86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

3.6 mm

78.0 m

(255.91 ft)

22.2 m

(102.36 ft)

15.6 m

(51.18 ft)

7.8 m

(25.59 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)

Video Frame Rate

Main stream: 3840 × 2160 -(1 fps–25/30 fps)
Sub stream: 704 × 576-(1–25 fps)/704 × 480-(1–30 fps)
Third stream: 1920 × 1080-(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR/ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G;Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP;SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 9/11
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encrypton;Firmware encrypton;Confguraton

encrypton;Digest;WSSE;Account lockout;Security logs;IP/

MAC fltering;Generaton and importng of X.509 ce

rtfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted

executon;Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

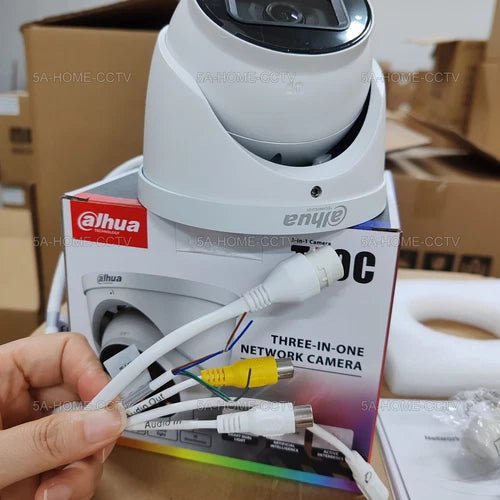

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC; PoE

Power Consumption

Basic: 4.5 W (12 VDC); 5.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")

Net Weight

0.75 kg (1.65 lb)

Gross Weight

0.92 kg (2.03 lb)

Q&A

Q: Can I use WiFi for this camera ?

A: No, This is wired camera, should connect wired internet cable, it is not a wifi camera.

Q : What is POE camera?

A: Means that camera can power by POE switch or POE NVR, internet cables can supplier power to camera, no need connect extra power adapter. Please note, camera without power adapter in it, so we sugget you use POE switch or extra power adapter if needed

Q: What is APP for this camera?

A: APP is DMSS, support IOS or andriod. for PC client software is Smartpss

Q: Can I update firmware for this camera?

A: Yes , you can update firmware yourself, this is original dahua camera, support update firmware.

Q: This camera is in english version？

A: Yes, camera in english version
